TERRA-AMP/G2

IP PoE amplified audio encoder/decoder.
Use for paging, intercom, music streaming, audio routing, pre-recorded and scheduled announcements, VoIP communication or as a SIP device.
Input or output digitised audio from a network and provide an analogue output with I/O or optional RS232 control.
Simultaneous encoding/decoding of audio enables bi-directional and full duplex communication.
Store messages, music or alerts on the 200mb internal memory. SD card port (512GB).
Trigger messages, music or alerts with the integrated scheduler.
Integrate with 3rd party devices such as door access and AV systems
Configured, controlled and monitored via web browser.

Description

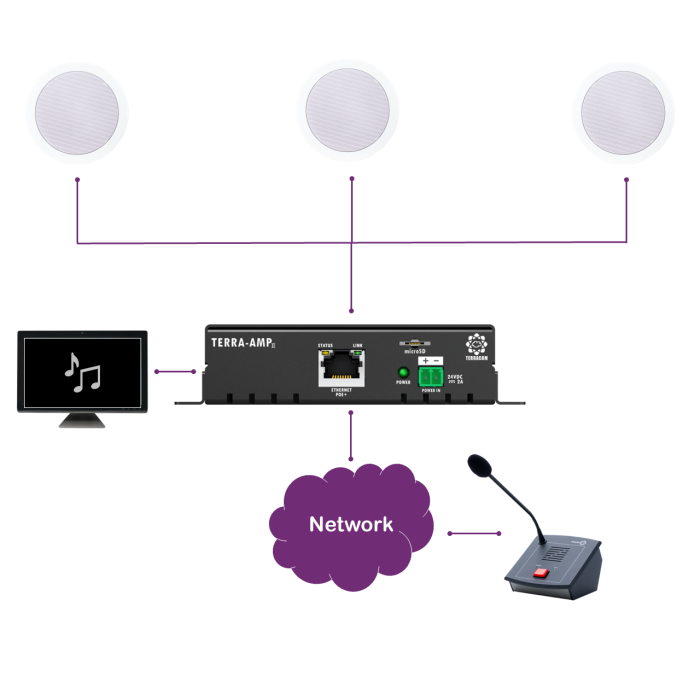

The TERRA-AMP/G2 can be used to power and control multiple passive Penton loudspeakers, to create a networked public address system with functionalities such as class/shift changes, paging, music/message storage, and streaming. For all-call paging announcements, use the TERRA-K microphone; for multiple zones, choose the PPM-IT5.

Key Technical Specification

Inputs:	1 mic/line balanced input / 3 contact
Outputs:	2 balanced line outputs (1 stereo or 2 mono) / 2 relay
Amplified outputs:	2 x 15 W (8 Ω) balanced independent
Audio outputs:	Maximum level +5 dB, bandwidth 20 Hz ˜ 20 kHz
Connectivity:	Single CAT5/6 cable connectivity for audio and control
Power:	PoE+ or 24 VDC power supply (if PoE+ is not available)
Supports:	G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoding
Communication:	SIP / Multicast
Memory	200mb internal / SD card port (512GB)
