TERRA-8IO

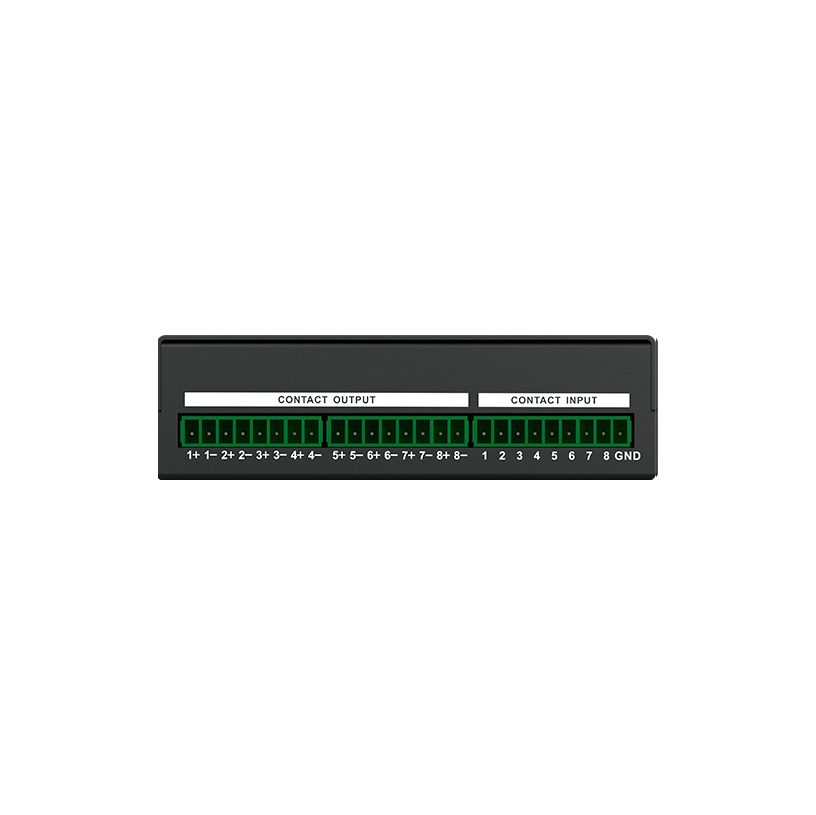

  • Contact In x 8 and Contact Out x 8
  • SNMP (Simple Network Management Protocol) for device management on IP networks
  • Web browser interface for management and monitor
  • RS232 for 3rd party control
  • Internal 80 MB storage for recoding, message storage
  • PoE or 24 VDC power supply (if PoE is not available)
  • Power LED and Status LED indicators
Category:

Description

The TERRA-8IO is an IP, POE control interface unit with 8 control contacts in and 8 control contacts out as well as a RS232 serial port. This makes the TERRA-8IO an ideal IP solution for any applications that require a simple device to activate and monitor analogue contact closures. The serial port is available for 3rd party control and activation of I/O contacts.
The TERRA-8IO is easily configured via its own web interface providing full control over features such as priority and event management & logic control.
