Description

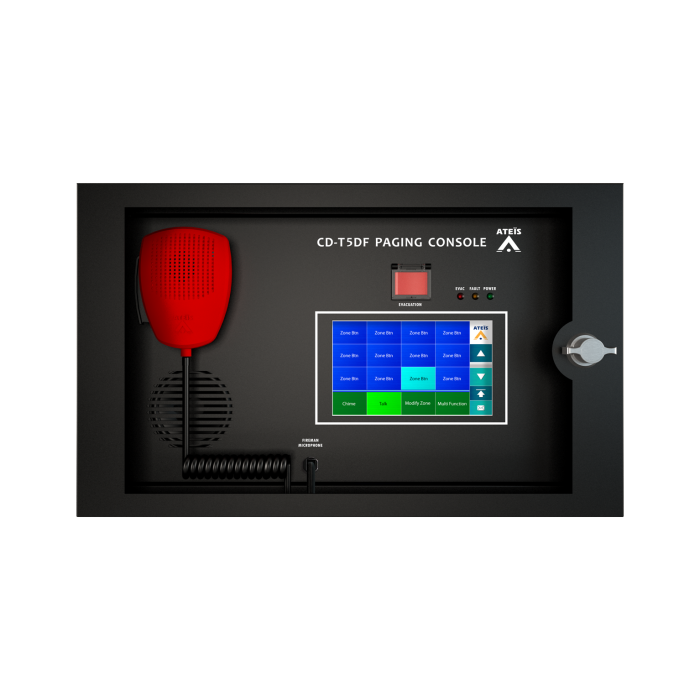

The CD-T5DF is a wall-mount paging console compatible with BOUTIQUE PA/VA systems. It features a 5″ LCD touch screen, fireman microphone, and evacuation button, housed in a lockable IP30-rated metal enclosure. The touch screen enables call paging, message broadcasting, event triggering, recording, playback, and level control. All functions—such as zone naming, group buttons, and chime settings—can be pre-configured via web browser. Multiple user levels with password protection ensure secure operation in both commercial and high-security environments. Up to 16 consoles can connect to the BTQ-SL8, and 32 to the BTQ-VM4/VM8/SG8, using daisy-chain or redundant loop wiring. Max cable length is 250 m (820 ft) via STP CAT5/6 with shielded RJ45 connectors. The CD-T5DF is eco-friendly, consuming only 1 W in standby mode.
