Description

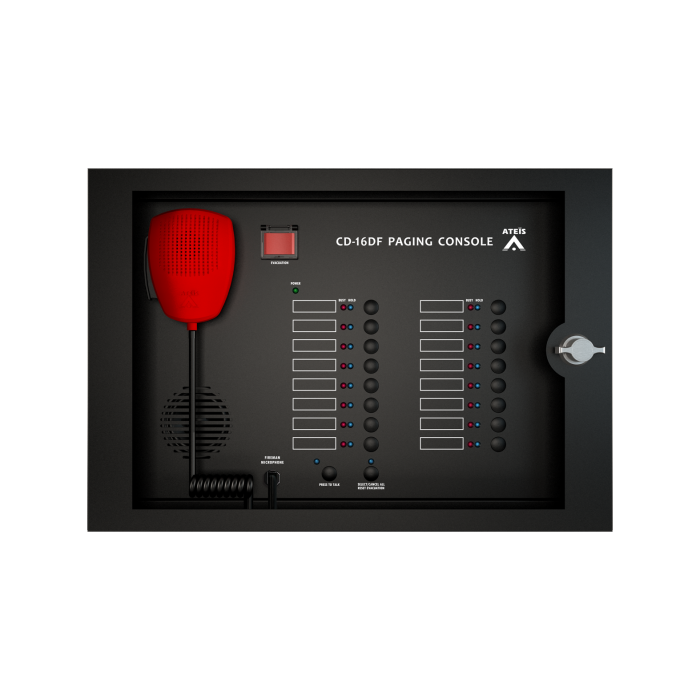

The CD-16DF is a wall-mount paging consoles with 16 keys and EVAC buttons, compatible with the BOUTIQUE PA/VA system. Housed in a lockable, heavy-duty IP30-rated metal enclosure, the keys can be configured for single/group zone selection, event triggering, recording, message playback, and more—via a web browser. The talk button supports PTT or latching mode. Both models include a fireman microphone and evacuation button. Up to 16 consoles can connect to the BTQ-SL8, and up to 32 to the BTQ-VM4/VM8/SG8, using daisy-chain or redundant loop wiring. Maximum cable length is 250 m (820 ft) via STP CAT5/6 with shielded RJ45 connectors. Both models are eco-friendly, with standby power consumption below 1.5 W.
