ATEÏS BTQ Network Cards

Compatible with the BOUTIQUE PA/VA systems
Secured and dedicated card for audio and data transmission
Low latency < 0.08 ms per node
Redundant loop architecture

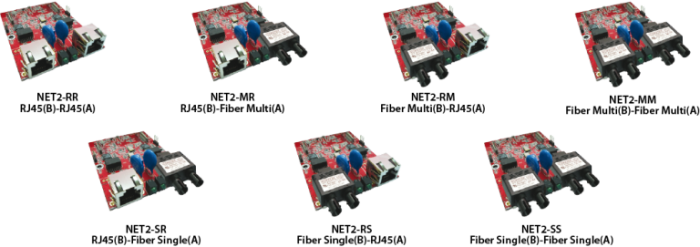

NET2-RR: RJ45(B)-(A)
NET2-MR: RJ45(B)-Fiber Multi(A)
NET2-RM: Fiber Multi(B)-RJ45(A)
NET2-MM: Fiber Multi(B)-(A)
NET2-SR: RJ45(B)-Fiber Single(A)
NET2-RS: Fiber Single(B)-RJ45(A)
NET2-SS: Fiber Single(B)-(A)

Description

The ATEÏS BOUTIQUE network is a fully monitored, ultra-fast audio network capable of transmitting 64 audio channels (32-bit, 48 kHz) with low latency (<0.08 ms per node) over STP CAT5/6 or fiber-optic cables. Up to 64 BTQ-VM4/VM8 controllers or BTQ-SG8 secondary units can be connected within the BOUTIQUE global network. Thanks to ATEÏS’s redundant network algorithm, the redundant loop in BTQ-VM/SG units ensures continuous system operation in the event of unexpected cable disconnection. For distances up to 100 m, the NET2-RR (RJ45 to RJ45) netcard is suitable. For longer distances, fiber-optic modules—NET2-MR, NET2-RM, NET2-MM, NET2-SR, NET2-RS, or NET2-SS—extend the range up to 2 km (multi-mode) or 20 km (single-mode) between units.
