Description

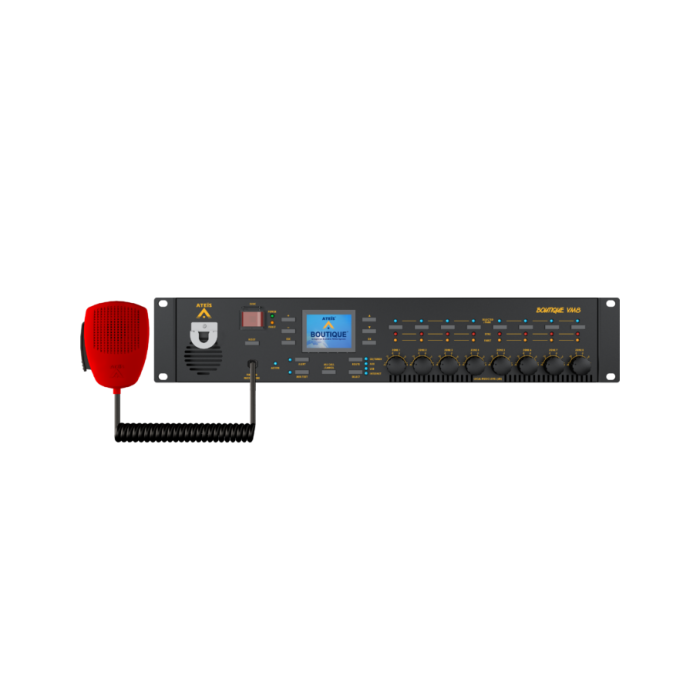

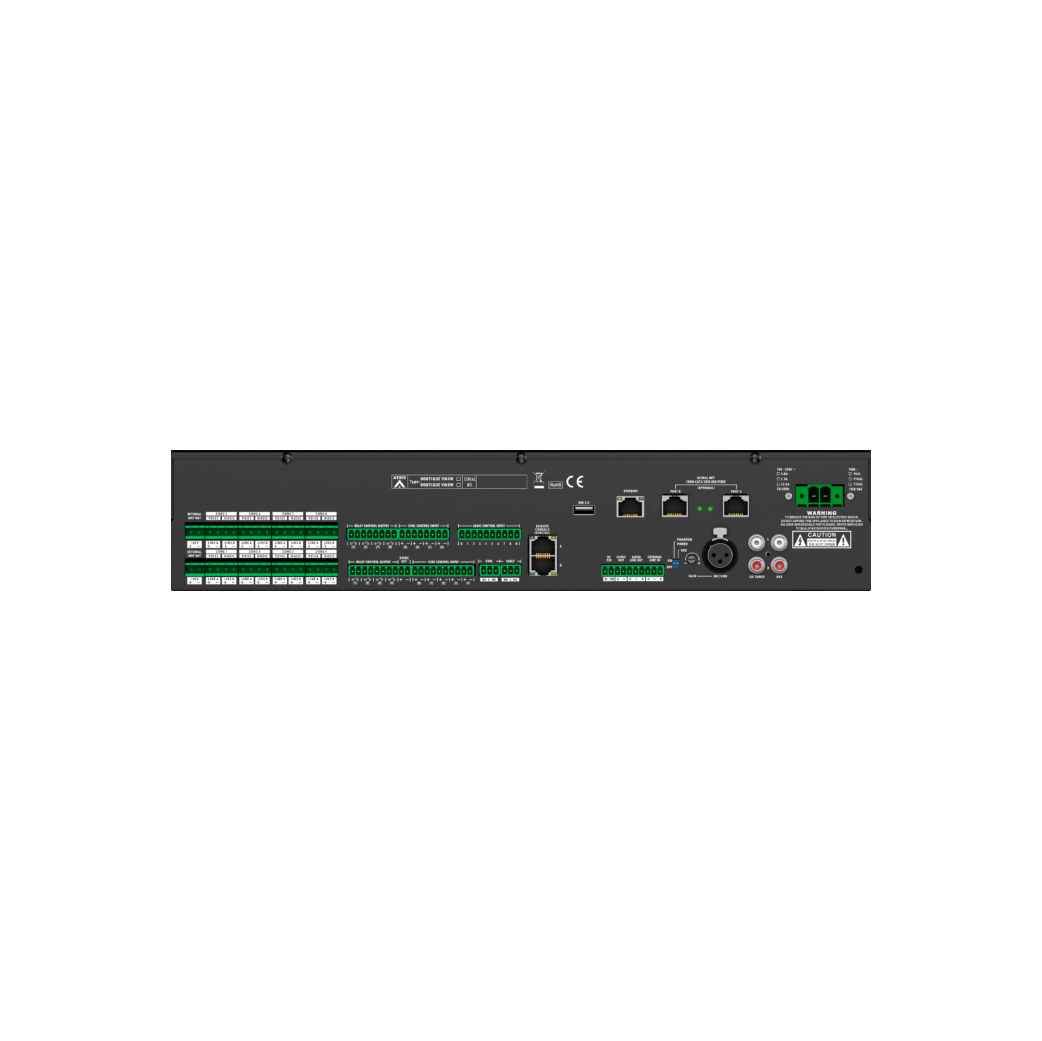

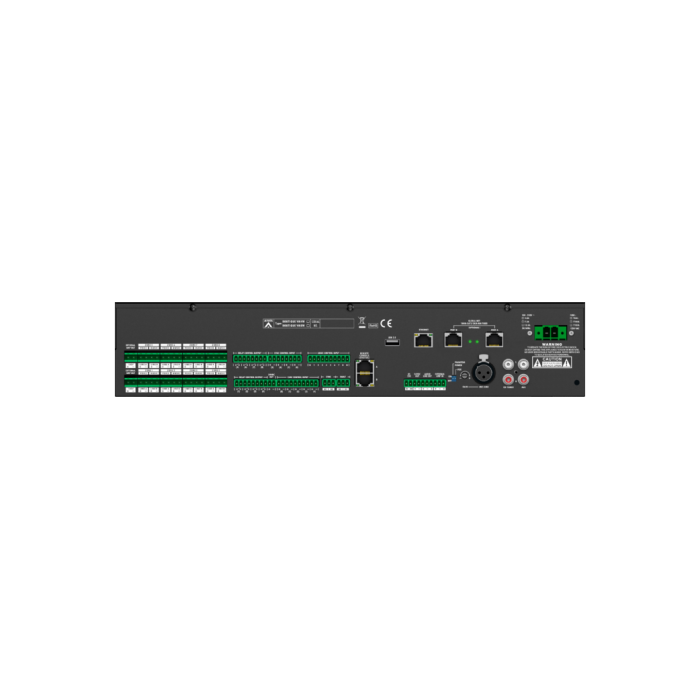

The BTQ-VM8 is a rack-mountable, compact PA/VA controller that supports up to 8 monitored speaker zones. Each controller can be cascaded with up to 31 BTQ-SL8 secondary units via local DigiLink, and with up to 64 BTQ-VM4, BTQ-VM8, or BTQ-SG8 units via Global-Net. This allows the system to scale from as few as 4 monitored A/B speaker zones to a large networked system of up to 16,384 zones. The BOUTIQUE controller comes fully integrated with a high-efficiency Class-D amplifier, available in either 250 W or 500 W versions. It is capable of handling up to 1000 W speaker load per zone and a maximum of 2000 W per unit.
